Linear guides are used in situations of linear reciprocating motion and can achieve high-precision linear motion under high loads. The function of a linear motion guide is to support and guide moving components, performing reciprocating linear motion in a given direction.
Linear guides are mostly used in automated machinery, such as laser machine industry, dispensing machine industry, industrial machinery (plastic machinery, printing machinery, papermaking machinery, etc.), electronic machinery. In high-speed transportation equipment, medical equipment, game machine industry, photography industry, and furniture industry, linear guides are widely used as industrial accessories.

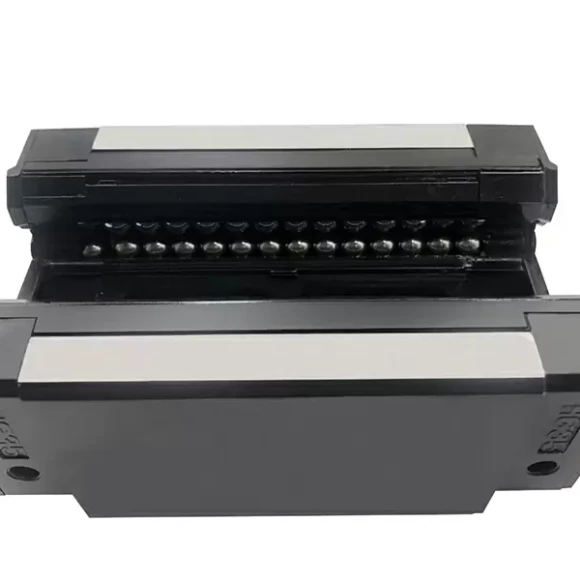

The linear guide block can be roughly divided into three types: flange type square high assembly type square low assembly type. Each type has two different sizes (flange type standard extension type, square high assembly type standard extension type, and square low assembly type short standard type), which correspond to the same size of guide rails. Different sizes of linear guide rails have different application scenarios, and 15-25 sizes of small and medium-sized guide rails are suitable for small equipment, Like a robotic arm, guide rails with a size of 30-45 have a large load-bearing capacity and are suitable for large equipment. (Square low assembly type) (flange type) (Square high assembly type).
