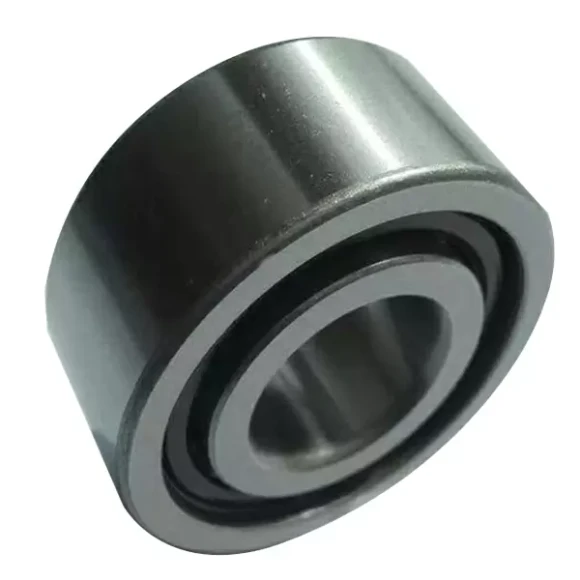

Double Rows Type

Product Short Description

Angular contact bearing is also known as angular contact radial thrust ball bearing. This type of bearing is especially suitable for bearing radial and axial loads at the same time, and can also be used to bear pure axial loads, and allow a higher speed of operation. The size of the axial load borne by this type of bearing varies with the size of the contact Angle, and the greater the contact Angle, the greater the axial load borne by the bearing. The contact Angle is defined as the Angle between the line (or normal) of the contact point of the steel ball and raceway and the radial plane perpendicular to the bearing axis in the radial plane perpendicular to the bearing axis.

Double-Row Type: (52XX, 53XX, 32XX, 33XX, LD57, LD58) The design of double-row angular contact bearings is basically the same as that of single-row angular contact bearings. However, the axial size is relatively small, double-row angular contact ball bearings have good rigidity, can withstand two-way axial load, but also can withstand a certain overturning force, its use effect is similar to the back-to-back configuration of two single-row angular contact bearings.
